Precision Piezoelectric Wafer Unleashed Exploring Intricacies Of LiTaO3
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Material: | LiTaO3 Wafer | Grade: | SAW Grade |
|---|---|---|---|
| Orientation: | Z0°-cut | Surface Finish: | Double / Single Side Polish |
| Diameter: | 3inch | Thickness: | 20~100um |
| Primary Flat: | 22mm±2mm | Application: | Pyroelectric Sensor |
| Highlight: | Precision Piezoelectric Wafer,Unleashed Exploring Intricacies piezo wafer,piezo wafer Of LiTaO3 |
||
Product Description

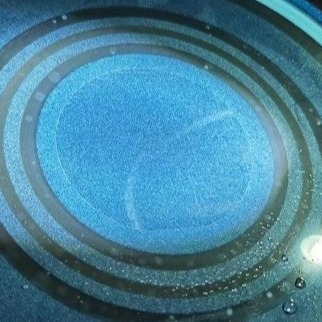

Pyroelectric Precision Unleashed: Exploring the Intricacies of LiTaO3
Dive into the realm of pyroelectricity with LiTaO3, a crystalline substance renowned for its remarkable pyroelectric effect. This inherent property of LiTaO3 manifests when exposed to temperature variations, generating an electric charge that opens avenues for innovative applications. At the forefront of this technological marvel are our ultra-thin LiTaO3 wafers, a testament to precision with thicknesses as minimal as 20um at the wafer level, extending up to 4 inches in diameter. This combination of pyroelectric prowess and ultra-thin design propels LiTaO3 into the spotlight, playing a pivotal role in diverse applications, from temperature sensing in industrial settings to the creation of responsive infrared detectors.
|
Material |
Ltihium Tantalate (LT) Wafer |
||
|
Diameter |
3inch |
4inch |
6inch |
|
76.2mm |
100mm |
150mm |
|
|
S/D |
20/10 |
20/10 |
20/10 |
|
TTV |
<3um |
<3um |
<5um |
|
PLTV |
>95% |
>95% |
>95% |
|
Warp |
<20um |
<40um |
<50um |
|
BOW |
<20um |
<30um |
<30um |
|
Roughness |
Ra<0.5nm |
Ra<0.5nm |
Ra<0.5nm |
|
Reduction |
Standard White |
Standard White |
Standard White |
|
Doping |
Fe doped |
Fe doped |
Fe doped |
|
Material |
3" 4" 6" LT wafer Saw/Optical grade |
|
Orientation |
Z0° / X112° / Y28° / Y36° / Y42° / YZ or Customized |
|
Curie Temp |
605°C±3°C |
|
Doped with |
Fe doped or undoped |
|
Single Domain |
Completed Polarization / Reduced |
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
