3 Inch Double Side Polish Linbo3 Wafer 30um 50um 80um Ultra Thin Film
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Piezoelectric Wafer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | $600 |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Name: | Ultra-thin Piezoelectric Wafer | Diam.: | 3 Inch Or Smaller |
|---|---|---|---|
| Material: | LiTaO3, LiNbO3, Crystal Quartz | Thickness: | 30um, 50um, 80um |
| Flat: | 22±2mm | Surface Finish: | Double Side Polish |
| Application: | Optical Modulators, Waveguides, And Filters | Ra: | <1nm |
| Highlight: | Double Side Polish Linbo3 Wafer,Ultra Thin Film Linbo3 Wafer,Linbo3 Piezoelectric Substrate |
||
Product Description

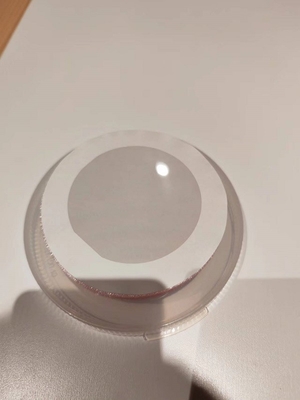

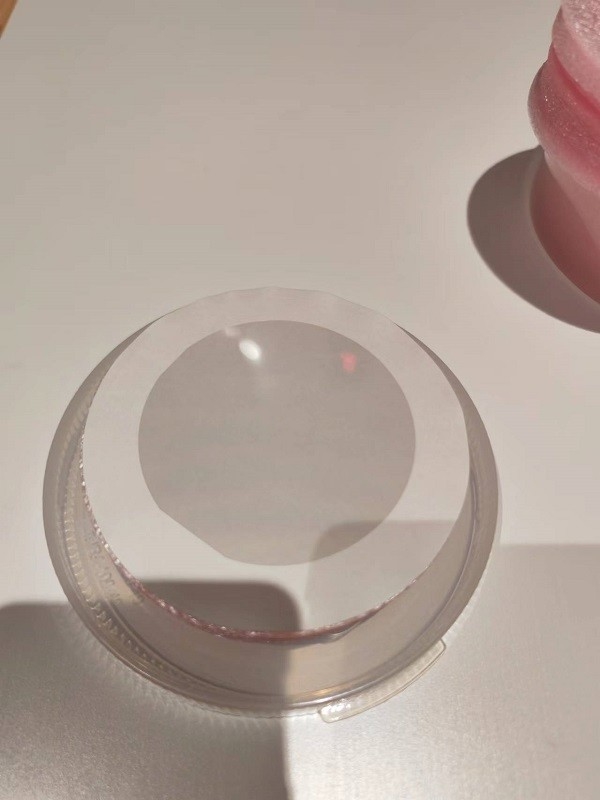

3 Inch Double Side Polish LiNbO3 30um 50um 80um Ultra Thin Film
The ultra-thin 3-inch LiNbO3 (lithium niobate) thin film, with a thickness of 30 μm (micrometers), refers to a specialized substrate or wafer made from a thin layer of LiNbO3 material.
-
Size: The thin film has a diameter of 3 inches, which is equivalent to approximately 76 millimeters. This size is commonly used in various optoelectronic applications.
-
Thickness: The thin film has an ultra-thin profile, with a thickness of 30 μm. This thinness allows for efficient light transmission and manipulation in optoelectronic devices.
-
Material: The thin film is made of LiNbO3, a crystalline material known for its excellent optical and electro-optic properties. LiNbO3 exhibits a wide transparency range and a high electro-optic coefficient, making it suitable for various photonics applications.
-
Application: The ultra-thin LiNbO3 thin film is often used in the fabrication of miniature photonic devices, such as optical modulators, waveguides, and filters. Its thin profile enables compact device designs and efficient light interaction within the device structure.
|
Material |
LiNbO3 | LiTaO3 | Quartz Crystal |
|
Diameter / Size |
3 Inch, Φ76.2 or Φ72.2mm | ||
|
Cut Type |
X / Y / Z 36Y / 64Y／128Y |
X / Y-Z / X-112Y 28Y / 36Y / 42Y |
X / Y / Z AT / ST / DT |
|
Surface Finish |
Double side polish / Single side polish | ||
|
Thickness |
30m / 50um / 80um | ||
|
TTV |
< 2 um | ||
|
Roughness |
Ra<0.5nm, Ra<1nm | ||
|
Curie Temp. |
1142℃ ± 2℃ | 605℃ ± 2℃ | 573℃ |
|
Edge Profile |
Round Ground, "C" Shape | ||
|
Primary Flat |
22±2mm |
||
|
Front Side |
Roughness Ra<= 1nm | ||
|
Back Side |
Roughness Ra: 0.2--0.7um GC#1000, GC#2000 | ||
|
Appearance |
No Cracks, saw marks, stains | ||
|
Single Domian |
Completed Polarization / Reduced | No Stress | |
