Piezoelectric Quartz Endcap For Thickness Shear Mode Pressure Sensing
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Material: | Quartz Crystal | Mode: | TS Mode |
|---|---|---|---|
| Orientation: | AT-Cut | Q-factor: | 2.4M |
| Sealing: | Glass Frit | Applications: | Downhole Detection |
| Highlight: | Piezoelectric Quartz Endcap,Pressure Sensing Piezoelectric Quartz,AT-Cut Quartz Piezoelectric Wafer |
||
Product Description
Piezoelectric Quartz Endcap for Thickness-Shear Mode Pressure Sensing

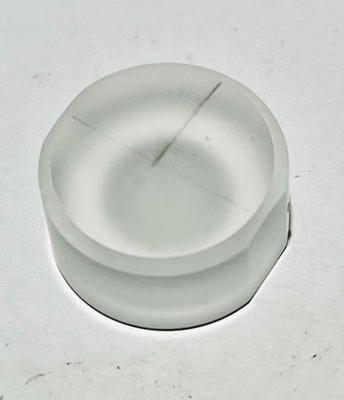

Piezoelectric Quartz Endcap
An AT cut quartz endcap can be utilized as part of a quartz thickness-shear mode pressure sensor. A thickness-shear mode sensor operates based on the change in resonant frequency of the quartz crystal caused by the applied pressure.
In a thickness-shear mode pressure sensor, a quartz crystal is typically cut into the AT orientation to take advantage of its stable frequency-temperature characteristics. The crystal is then shaped into an endcap form, which allows for convenient integration and mounting within the sensor assembly.

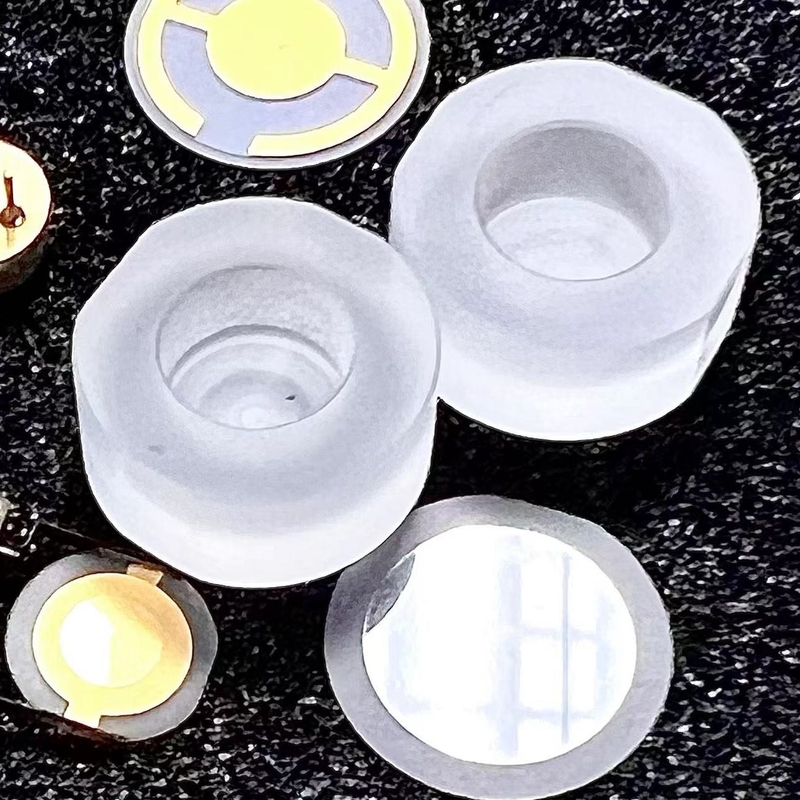

Quartz Endcap Application
The basic principle of operation involves applying pressure to the quartz crystal, which induces a change in its mechanical stress and mass distribution. This alteration in stress and mass leads to a shift in the resonant frequency of the crystal. The magnitude of the frequency shift is directly proportional to the applied pressure, allowing for pressure sensing or measurement.
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
