Semiconductor Use Fused Quartz JGS2 With Excellent Optical And Thermal Properties





Fused quartz JGS2 is a type of high-purity, synthetic quartz glass that offers excellent optical and thermal properties. It is widely used in various applications, including optics, lasers, semiconductors, and scientific instruments.



Features of Fused Quartz JGS2

  • High purity: JGS2 is made from high-purity synthetic quartz, ensuring excellent optical transmission and minimal impurities.
  • Transparency: It exhibits exceptional transparency in the ultraviolet (UV) to infrared (IR) range, making it suitable for a wide range of optical applications.
  • Chemical resistance: JGS2 is highly resistant to most acids, alkalis, and organic solvents, allowing it to withstand harsh chemical environments.
  • Thermal stability: It has a low coefficient of thermal expansion, providing excellent thermal stability and resistance to thermal shock.
  • Surface quality: JGS2 can be polished to achieve high-quality surfaces with minimal defects and excellent optical performance.

Here's an Excel table describing the specifications of fused quartz JGS2:

Parameter Description
Material Fused Quartz JGS2
Composition SiO<sub>2</sub> (Silicon Dioxide)
Transmission Excellent transparency in the ultraviolet (UV) to infrared (IR) range
Refractive Index 1.4585 (at 587.6 nm)
Density 2.203 g/cm<sup>3</sup>
Thermal Expansion Coefficient 5.5 x 10<sup>-7</sup> K<sup>-1</sup>
Operating Temperature Range Up to 1,200°C
Chemical Resistance Resistant to most acids, alkalis, and organic solvents
Surface Finish Single or double-sided polished
Surface Quality Typically specified as per industry standards (e.g., MIL-O-13830)
Dimensional Tolerance Customizable as per customer requirements
Wafer Sizes Available in various diameters: 2", 3", 4", 6", 8", and larger
Wafer Thickness Typically ranges from a few millimeters to several millimeters
Applications Optics, lasers, semiconductors, scientific instruments, etc.

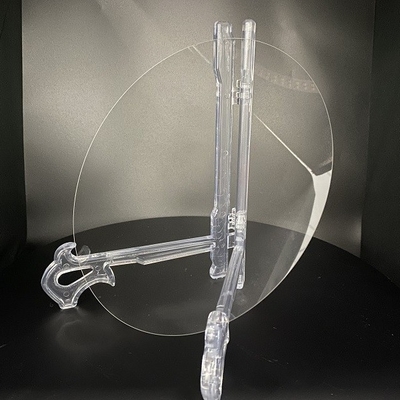

Semiconductor JGS2 Fused Quartz Wafer With Excellent Optical And Thermal Properties 0Semiconductor JGS2 Fused Quartz Wafer With Excellent Optical And Thermal Properties 1Semiconductor JGS2 Fused Quartz Wafer With Excellent Optical And Thermal Properties 2





Fused Quartz Fabrication Specifications

Parameter

JGS1

JGS2

JGS3

Maximum Size

<Φ200mm

<Φ300mm

<Φ200mm

Transmission Range (Medium transmission ratio)

0.17~2.10um (Tavg>90%)

0.26~2.10um (Tavg>85%)

0.185~3.50um (Tavg>85%)

OH- Content

1200 ppm

150 ppm

5 ppm

Fluorescence

(ex 254nm)

Virtually Free

Strong v-b

Strong V-B

Impurity Content

5 ppm

20-40 ppm

40-50 ppm

Birefringence Constant

2-4 nm/cm

4-6 nm/cm

4-10 nm/cm

Melting Method

Synthetic CVD

Oxy-hydrogen melting

Electrical melting

Applications

Laser substrate: Window, lens, prism, mirror...

Semiconductor and high temperature window

IR & UV
substrate





Semiconductor JGS2 Fused Quartz Wafer With Excellent Optical And Thermal Properties 3



Semiconductor JGS2 Fused Quartz Wafer With Excellent Optical And Thermal Properties 4
