BT DT Cut 4 Inch Single Crystal Quartz Wafer Double / Single Side Polish
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

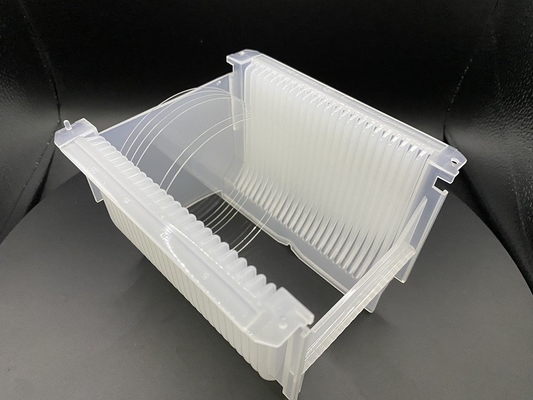

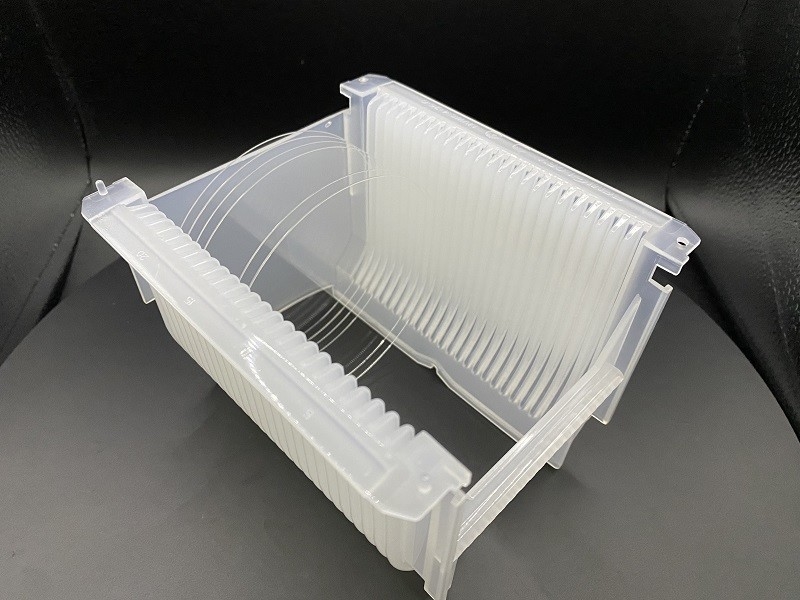

| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Material: | Single Crystal Quartz | Diameter: | 2inch 3inch 4inch 6inch 8inch |
|---|---|---|---|
| Cut Type: | X, Y, Z, AT, ST, BT, DT, IT | Thickness: | 0.35mm, 0.5mm, 1mm |
| Surface Finish: | Double / Single Side Polish | Usage: | Surface Acoustic Wave |
| Surface Ra: | <1nm | Cleaness: | Class 1000 |
| Highlight: | Single Side Polish Quartz Wafer,DT Cut Single Crystal Quartz Wafer,4 Inch Quartz Wafers Substrates |
||
Product Description
BonTek BT DT Cut 4 Inch Crystal Quartz Wafers

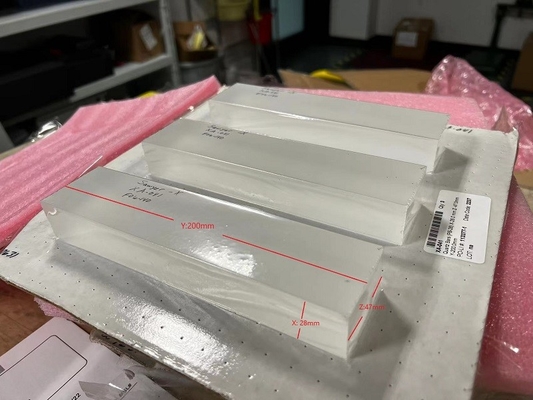

All single crystal quartz wafersshould be growthn from one special seed. And the different cut type will cause the different seed location. One type is inside the wafer names "withseed", the other type is not inside the wafers, so names "seedless". Seeded and Seedless Quartz Single quartz crystal is growed from one special seed and then is divided into three zones, x/y & z zones. Sedless means the wafers are in the pure x /y or z zone.
AT & BT & SC etc such orientations are for many frequency control application which will be used for many electronic and space application, such as mobile phone and satellite etc.
| Product | Single Crystal Quartz Wafer | ||||
| Orientation | X, Y, Z, AT, ST, BT, CT, ET ,DT, GT, NT, FC, SC, IT, etc. | ||||
| Diameter | 2 inch 50.8mm |
3 inch 76.2mm |
4 inch 100mm |
6 inch 150mm |
8 inch 200mm |
| Tolerance | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm |
| Thickness Tolerance |
±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm |
| Seed | seedless for any cut Or with seed |
seedless for Z-cut Other cut with seed |
|||
| Primary Flat | 16±2mm | 22±2mm | 32±2mm | 47.5±2mm 57.5±2mm |
57.5±2mm |
| Notch | - | - | - | 1~1.25mm 89~95° |
1~1.25mm 89~95° |
| S/D | 40/20 | 60/40 | 60/40 | 60/40 | 60/40 |
| TTV | <1.5um | <5um | <5um | <5um | <5um |
| PLTV | >95% | >95% | >95% | >95% | >95% |
| Warp | <9um | <15um | <30um | <50um | <70um |
| Bow | <9um | <15um | <30um | <40um | <60um |
| Ra | <0.5nm | <1nm | <1nm | <1nm | <1nm |
| Density(g/cm3) | 2.65 | Melting Point(°C) | 1750 |
| Thermal Conductivity, W/(m x K) (T = 25°C) | 10.7 (parallel to axis Z) 6.2 (perpendicular to axis Z) |
Thermal Conductivity, W/(m x K) (T = 25°C) |
7.1 x 10-6 (parallel to axis Z) 13.2 x 10-6 (perpendicular to axis Z) |
| Hardness (Mohs) | 7 | Specific Heat Capacity, J/(kg x K) (T = 25°C) | 710 |
| Specific Heat Capacity, J/(kg x K) (T = 25°C) | 4.34 (parallel to axis Z) 4.27 (perpendicular to axis Z) |
Young's Modulus (E), GPa | 4.34 (parallel to axis Z) 4.27 (perpendicular to axis Z) |
| Shear Modulus (G), GPa | 31.14 | Bulk Modulus (K), GPa | 36.4 |
| Chemical Stability | insoluble in water | Elastic Coefficients | C11=87 C12=7 C44=58 C13=13 C14=18 C33=106 |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
