Thickness Shear Mode Quartz Resonator Sensors For Temperature Pressure
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Thickness Shear Mode Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Thickness Shear Quartz End Cap | Material: | Piezoelectric Quartz |
|---|---|---|---|
| Orientation: | AT-Cut | Flat: | X Axis |
| Shape: | Cylindrical Cavity | Applications: | Quartz Resonators As Sensors For The Oil And Gas Industry |
| Highlight: | Temperature Resonator Sensor,Quartz Resonator Sensor,Thickness Shear Mode Resonator Sensor |
||
Product Description
Thickness Shear Mode Quartz Resonator Sensors For Temperature And Pressure

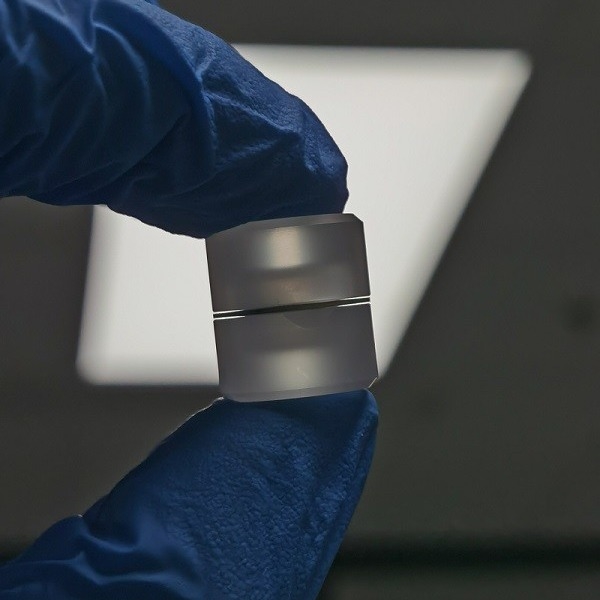

A quartz pressure sensor for downhole oilfield applications consists of a quartz piezoelectric resonator hermetically sealed between two quartz end caps. The resonatorand endcaps are made of quartz which is AT cut. An AT cut is preferred because it has the smallest temperature response compared to other available cuts. The quartz resonator is AT cut biconvex thickness shear mode. BonTek is capable of fabricating with high quality both the end caps and the quartz resonators.
Pressure applied to the external surfaces of the sensor forces the cylinder bore walls to displace inward. Planar compressive stresses are generated in the resonator in response to the cylinder displacement. An oscillator circuit maintains resonant vibration of the sensor resonator. The resonant frequency changes in direct proportion to stresses induced in the resonator by the external pressure [3]-[5]. The oscillator outputs a signal with a frequency that is directly proportional to the pressure. An electronic counter transforms the number of counts generated by the sensor signal in a given gatetime to a digital frequency.
