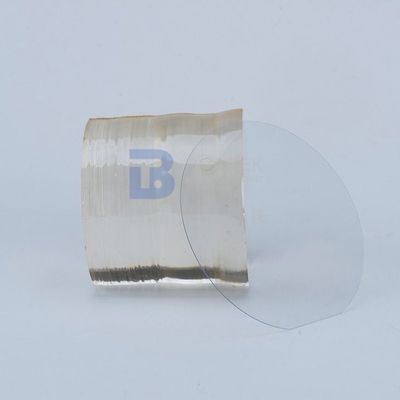

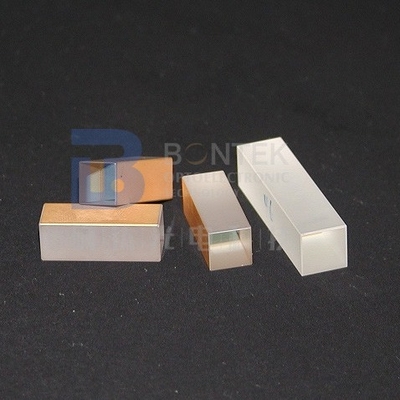

Z X Cut LiNbO3 Wafer Crystals Optical Grade Both Sides Polish
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | LiNbO3 (LNC) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Material: | LiNbO3 Crystal Wafer | Type: | Optical Grade |
|---|---|---|---|
| Diameter: | 4inch, 6inch, 8 Inch | Orientation: | X-Cut, Z-Cut |
| Thick: | 350um, 500um | Surface Type: | Both Sides Polish |
| Roughness: | Ra<5 Angstrom | Application: | Optical Device |
| Highlight: | X Cut LiNbO3 Wafer,Both Sides Polish LiNbO3 Crystals,Optical LiNbO3 Crystal Wafer |
||

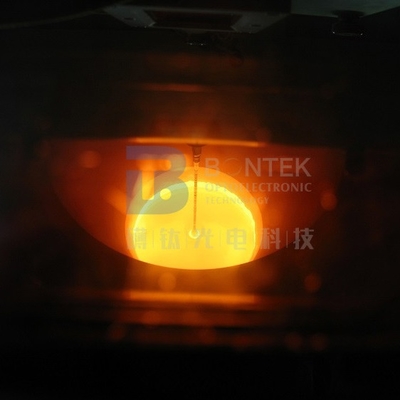

Product Description

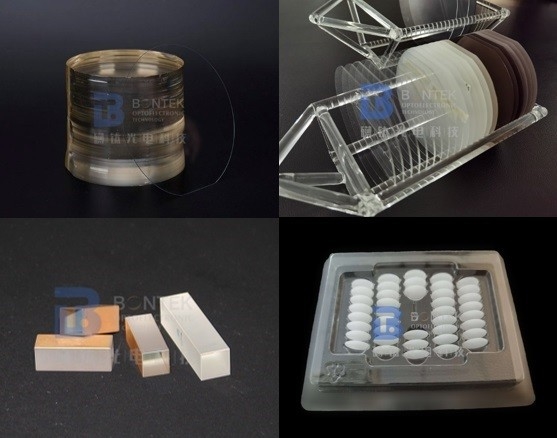

Z-Cut X-Cut LiNbO3 Crystals Wafer Optical Grade Both Sides Polish
The sound velocity for the longitudinal waves in LiNbO3 propagating along the principal axes is for the Z-direction, 7.271*10^5 cm/s; for the Y-direction, 6.549*10^5 cm/s; and for the X-direction, 6.580*10^5 cm/s.32,43,44 Applying these values to the case of a 10*10*0.5 mm3 Y-cut LNO crystal, the thickness extensional mode should appear at 6.58 MHz. The closest observed peak is centered at a slightly lower frequency of 6.34 MHz, which may be explained as a consequence of the clamping effect of the Metglas foils. The calculated length extensional resonances along the X and Z directions (327.5 kHz and 363.5 kHz, respectively) can be attributed to the peaks observed at 314 kHz and 355 kHz.
|
Material |
4inch 6inch 8inch LiNbO3 LNC wafer |
|
Orientation |
Z-cut or X-cut |
|
Surface finish |
Double sides polish (DLP/SLP/ SSP/DSP all available ) |
|
Thickness |
0.35mm, 0.50mm, 1.00mm |
|
TTV |
< 5µm |
|
BOW |
± 30um |
|
Warp |
< 40µm |
|
Orientation flats |
Semi Standard Notch |
|
Polished side Ra |
Roughness Ra<5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Crystal Sturucture |
Trigonal, Space group R3c, Point group 3m |
|
Melting Point |
1253℃ |
|
Mohs Hardness |
5 |
|
Density |
4.64g/cm3 |
|
Deliquescence |
None |
|
Optical Homogeneity |
~5x10-5/cm |
|
Transparency Range |
420-5200nm |
|
Absorption Coefficient |
~0.1%/cm @1064nm |
|
Refractive Indices @1064nm |
ne=2.146, no=2.220@1300nm ne=2.156, no=2.232@1064nm ne=2.203, no=2.286@632.8nm |
|
Thermal Expansion Coefficients (at 25℃ ) |
//a,2.0x10-6/K //a,2.2x10-6/K |
|
Thermal Conductivity Coefficients |
38 W/m/K at 25℃ |
|
Thermal Optical Coefficients |
dno/dT=-0.874 x 10-6/K at 1.4μm dne/dT=39.073 x 10-6/K at 1.4μm |
|
The Sellmeier Equations (λ in μm) |
no2=4.9048+0.11768/(λ2-0.04750)-0.027169λ2 ne2=4.5820+0.099169/(λ2-0.04443)-0.02195λ2 |
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
