Y64 Cut 4 Inch LiNbO3 Crystals Wafer One Side Polish
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |

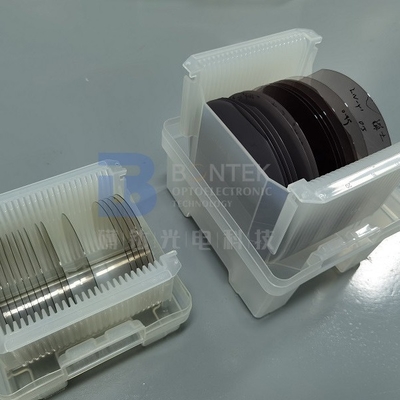

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | LiNbO3 Wafer | Grade: | SAW Grade |
|---|---|---|---|
| Orientation Cut: | Y64 | Surface: | One Side Polish |
| Diameter: | Φ100mm | Thickness: | 500±25um |
| Surface Ra: | Ra<5 Angstrom | TTV: | <5um |
| Highlight: | LiNbO3 Wafer One Side Polish,Y64 Cut LiNbO3 Crystals,4 Inch LiNbO3 Crystals |
||
Product Description

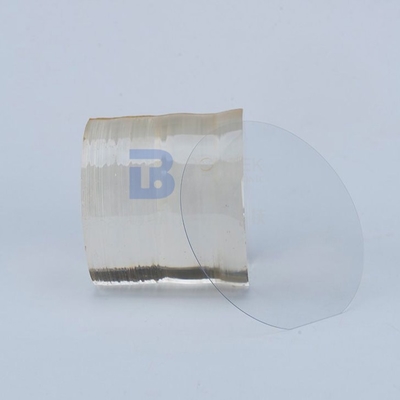

Y64-Cut 4 inch 0.5mm LiNbO3 Wafer One Side Polish
The LiNbO3 crystal has a trigonal symmetry, and the polarization vector lies along the c-axis. LiNbO3 samples were poled by the supplier immediately after growth. After the poling procedure, the LNO crystals remain in the single-domain state, and repolarization/depolarization does not occur at room temperature (RT).
|
Material |
LiNbO3 Crystal |
|
Orientation |
X / Z / Y41° / Y64° / Y128° / YZ / YX or Customized |
|
Diameter |
Φ76.2mm (3 inch); Φ100mm (4 inch); Φ150mm (6 inch) |
|
Surface finish |
One / Both sides polish |
|
Thickness |
350±25um / 500±25um |
|
TTV |
< 1~5um |
|
BOW |
± (25um ~40um ) |
|
Warp |
<= 35um |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Cracks, saw marks, stains |
None |
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
