SAW grade Y128 Cut LiNbO3 Wafer DSP Cassette Pack 0.5mm
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | LiNbO3 Wafer | Type: | SAW Grade |
|---|---|---|---|
| Orientation Cut: | Y128 | Surface: | Both Side Polish |
| Diameter: | Φ100mm | Thickness: | 500±25um |
| Surface Ra: | Ra<5 Angstrom | TTV: | <5um |
| Highlight: | Y128 Cut LiNbO3 Wafer,DSP LiNbO3 Crystals,0.5mm LiNbO3 Crystal Wafer |
||
Product Description

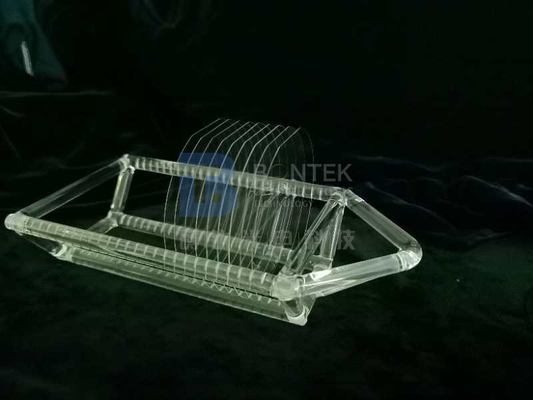

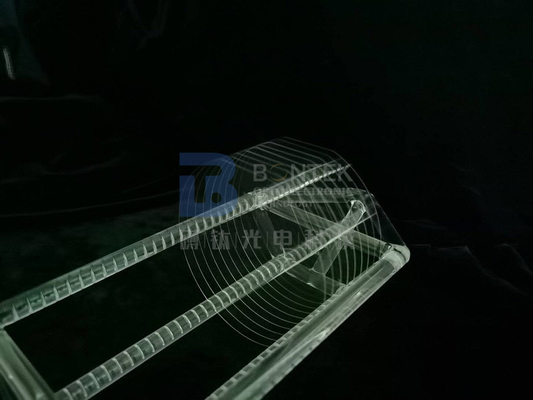

Y128-Cut 4 inch 0.5mm LiNbO3 Wafer DSP pack in Cassette

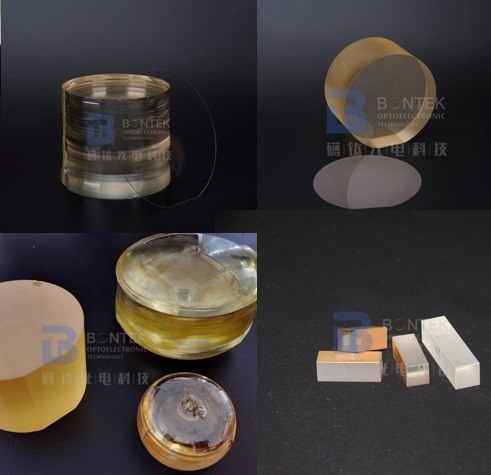

Lithium Niobate (LiNbO3, LNO), an uniaxial ferroelectric with a very high Curie temperature (1500 K). Among other attractive features, one should note its relatively low price, high chemical, thermal, and mechanical stability, availability of big crystals of sufficiently high quality and, last but not least, its lead-free composition.
LNO and the related material LiTaO3 are widely used in surface and bulk acoustic wave devices, optical modulators and waveguides, filters, transducers, acoustic microscopes, etc.
|
Material |
LiNbO3 Crystal |
|
Orientation |
X / Z / Y41° / Y64° / Y128° / YZ / YX or Customized |
|
Diameter |
Φ76.2mm (3 inch); Φ100mm (4 inch); Φ150mm (6 inch) |
|
Surface finish |
One / Both sides polish |
|
Thickness |
350±25um / 500±25um |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Cracks, saw marks, stains |
None |
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
