Lead Free Congruent LiNbO3 LNC Single Crystals With Large ME Effects
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3, LNC) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Material: | LiNbO3 LNC Wafer | Type: | SAW, Optical |
|---|---|---|---|
| Diameter: | 4inch, 6inch, 8 Inch | Orientation: | 128° Y-cut |
| Thick: | 350um, 500um, 1000um | Surface Type: | DSP, SSP |
| Roughness: | Ra<1nm, Ra<0.5nm | Application: | SAW Filter, Ultrasonic Transducer |
| Highlight: | LiNbO3 Single Crystals,Lead Free Congruent Single Crystals,Single LiNbO3 Wafer |
||

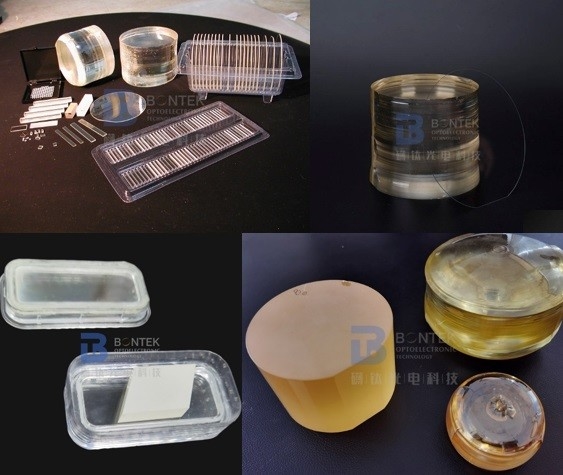

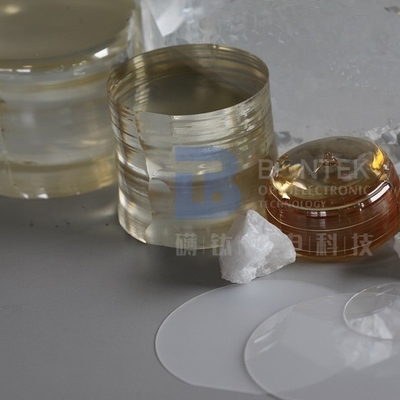

Product Description
Lead-Free Congruent LiNbO3 (LNC) Single Crystals With Large ME Effects
Recently, we have shown the possibility to produce large ME effects in composites containing lead-free congruent LiNbO3 (LNC) single crystals. Furthermore, some new promising techniques have been developed to directly engineer two ferroelectric domains with antiparallel spontaneous polarization vectors in a single crystal plate (bidomain).
In previous studies, we proposed the use of square or long bar metglas/PE bi-layered composites with Y128-cut LNC single-crystal “head-to-head” (H–H) and “tail-to-tail” (T–T) bidomains in sensitive magnetic field sensors. The anisotropy of single-crystalline LNC can be used to achieve a high direction-dependent sensitivity to magnetic fields at low frequencies. Choosing a crystal with an appropriate cut is a very important step in the development of the ME sensors.
|
Material |

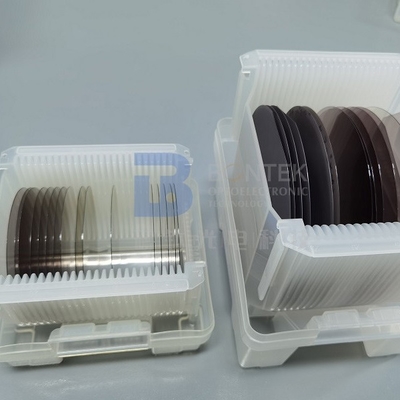

4inch 6inch 8inch LiNbO3 LNC wafer |
|
Orientation |
Z-cut or Y128°-cut |
|
Surface finish |
Single or Double sides polish (DLP/SLP/ SSP/DSP all available ) |
|
Thickness |
0.35mm, 0.50mm, 1.00mm |
|
TTV |
< 5µm |
|
BOW |
± 30um |
|
Warp |
< 40µm |
|
Orientation flats |
Semi Standard Notch |
|
Polished side Ra |
Roughness Ra<10A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Crystal Sturucture |
Trigonal, Space group R3c, Point group 3m |
|
Melting Point |
1253℃ |
|
Mohs Hardness |
5 |
|
Density |
4.64g/cm3 |
|
Deliquescence |
None |
|
Optical Homogeneity |
~5x10-5/cm |
|
Transparency Range |
420-5200nm |
|
Absorption Coefficient |
~0.1%/cm @1064nm |
|
Refractive Indices @1064nm |
ne=2.146, no=2.220@1300nm ne=2.156, no=2.232@1064nm ne=2.203, no=2.286@632.8nm |
|
Thermal Expansion Coefficients (at 25℃ ) |
//a,2.0x10-6/K //a,2.2x10-6/K |
|
Thermal Conductivity Coefficients |
38 W/m/K at 25℃ |
|
Thermal Optical Coefficients |
dno/dT=-0.874 x 10-6/K at 1.4μm dne/dT=39.073 x 10-6/K at 1.4μm |
|
The Sellmeier Equations (λ in μm) |
no2=4.9048+0.11768/(λ2-0.04750)-0.027169λ2 ne2=4.5820+0.099169/(λ2-0.04443)-0.02195λ2 |
Acceptance Check
