Plano Alpha Quartz Crystal Blanks Handed For Time Control Oscillators
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |

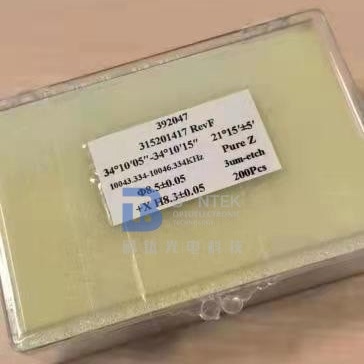

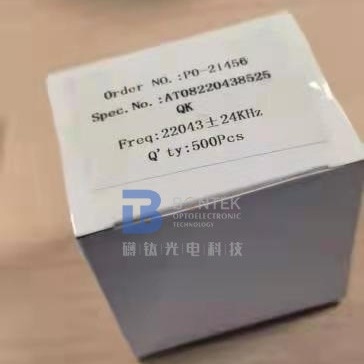

| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 200000 pcs / Month |
|
Detail Information |
|||
| Material: | Cultured Quartz Blanks | Frequency: | 1MHz~54MHz Fundamental |
|---|---|---|---|
| IRE: | (yxl)35°，(yxwl)24°24'/34°18' | θ Angle: | ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, …, Etc. |
| Size: | Φ5mm, Φ7mm, 10mm；20×20mm Etc. | Overtone: | Fundamental; 3rd Overtone; 5th Overtone |
| Surface Type: | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide）& Etched Std | Contouring: | Plano-Convex: 0.5 Dioptric～10 Dioptric Bi-Convex: 10 Dioptric～15 Dioptric |
| Highlight: | Plano Alpha Quartz Crystal Blanks,Handed Quartz Crystal Blanks,Time Control Oscillators Alpha Quartz |
||
Product Description
Plano-Plano Alpha Quartz Blanks Right-Handed For Time Control Oscillators

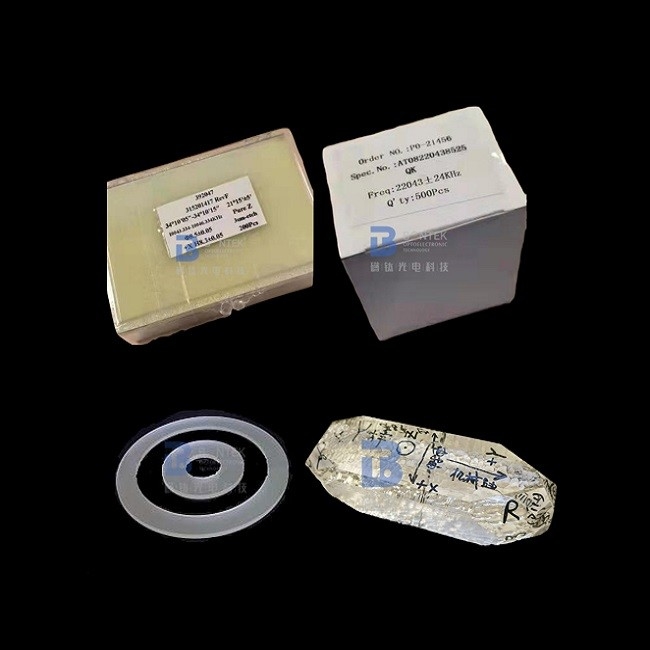

Single crystal quartz blanks are made of right-handed α quartz crystal artificially grown bars. The cultured crystal bars are most used to fabricate piezoelectric components for applications as timing, frequency control and frequency selection.
BonTek provide quartz crystal blanks in all standard formats: Round, Square, SMD, strip, plano-plano, contoured, lapped, and polished. Please check below our detailed capabilities.
| Cuts Type (orientation) | X, Y, Z, AT, BT, CT, ET, DT, GT, NT, FC, SC, IT, AC, BC, ST, TS, MT, NT, RT, LC,…, etc |
| Tolerance (±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, …, etc. |
| Phi Angle: ±5′, ±10′, ±15′, ±30′, …, etc. | |
| Size | Round (3.0mm～8”)/ Square (1.6x1.6mm～48x48mm or larger)/ SMD (1.2x2.4mm Above) |
| Size Tolerance (±) | ±0.01mm,+/-0.005mm, +/-0.0005mm, according to size |
| Frequency/ Thickness | 1 Mhz up to 54Mhz for AT-Cut Fundamental; Up to 70Mhz by Etching |
| Flat | Per requested: the flat shall be perpendicular to X axis within ±10 deg |
| Surface Type | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide)& etched Std |
| Overtone | Fundamental; Third Overtone (3rd); Fifth Overtone (5th) |
| Contouring (dioptric) | Plano-Convex: 0.5 dioptric～10 dioptric Bi-Convex: 10 dioptric～15 dioptric |
| Material | Piezo / Optical grade |
| Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 2 /c㎡, 10/c㎡, Max 30/c㎡, Max 100/c㎡, Max 300/c㎡; Swept Quartz |
| Inclusions Density | Ia, Ib, I, II, III Grades |
| Swept | Both Pure Z and Y Bar available,with or without Swept quartz |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
