4 Inch Lithium Niobate Wafer Polished 36Y For SAW Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | LiNbO3 Wafer | Grade: | SAW Grade |
|---|---|---|---|
| Diameter: | 4'' & 6'' | Orientation: | 36Y, 64Y, 128Y |
| Thickness: | 350um, 500um | Surface: | Single Side Polish, Double Side Polish |
| Roughness: | Ra<0.5nm | Application: | SAW Filter, Ultrasonic Transducer |
| Highlight: | Polished Lithium Niobate Wafer,4 Inch Lithium Niobate Crystal,36Y LiNbO3 Substrate |
||
Product Description

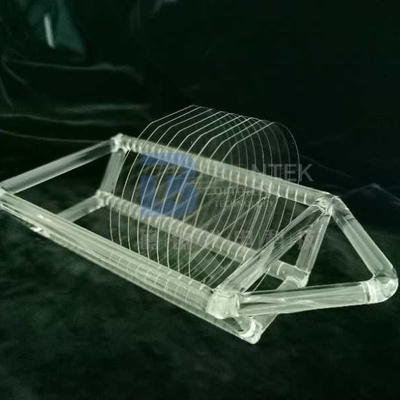

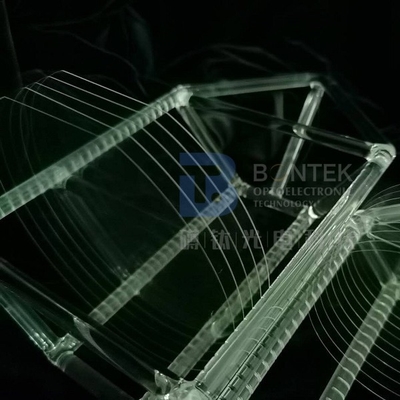

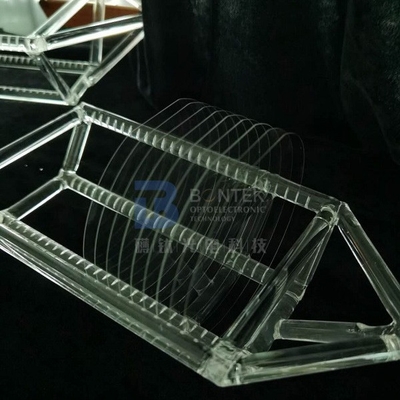

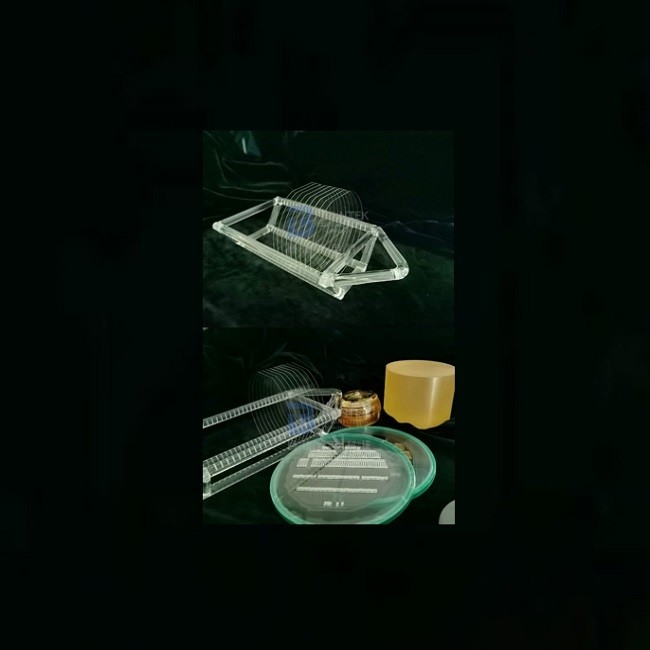

4 Inch Lithium Niobate Wafer Polished 128Y 36Y For SAW Applications
Lithium Niobate is a ferroelectric material suitable for a variety of applications. Its excellent electro-optic, nonlinear optical and piezoelectric properties make it a good optical waveguide material, and to produce medium and low frequency SAW filter, high power high temperature resistant ultrasonic transducer, etc.
BonTek has both SAW grade and Optical grade Lithium niobate crystals. We also has the technology of LN reduction and LN doping, such as MgO:LN, Nd:Mg:LN, Fe:LN. Any design you may have, our tech-sales and engineers are here to suggest you the most suitable material, cut angle or thickness etc.
|
Material |
3" 4" 6" 8" LN wafer (Saw/Optical grade) |
|
Orientation Cut |
Y64°, Y128°, YZ or Customized |
|
Surface finish |
single or double sides polish (DLP/SLP/ SSP/DSP all available ) |
|
Thickness |
0.18/0.25/0.35/0.50/1.00 + mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Curie Temp |
1142°C±3°C |
|
Edge Rouding |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Cracks, saw marks, stains |
None |
|
Single Domain |
Completed Polarization/Reduced |
FAQs:
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
