Lithium Fluoride LiF Infrared Optics For UV-Sources Receivers And Eximer Lasers
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Lithium Fluoride (LiF) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material: | Lithium Fluoride (LiF) | Category: | Infrared Optics |
|---|---|---|---|
| Diameter: | 5mm - 200mm | Thickness: | 1mm - 50mm |
| Transmission Range: | 0.12um - 6.00um | Density: | 2.64 Gm/cc |
| Refractive Index: | 1.3920 @ 0.6 Microns | Reflection Loss: | 5.2% @ 0.6 µm (2 Surfaces) |
| Highlight: | Receivers Infrared Optics,LiF lithium fluoride crystal,Infrared Optics UV-Sources |
||
Product Description
Lithium Fluoride LiF Infrared Optics For UV-Sources, Receivers and Eximer Lasers

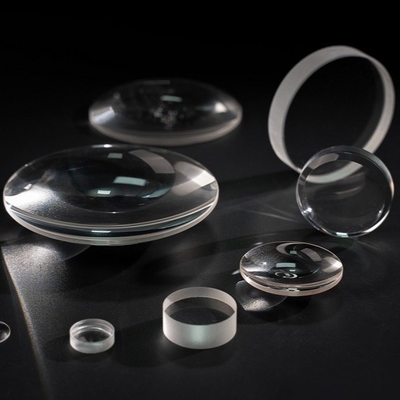

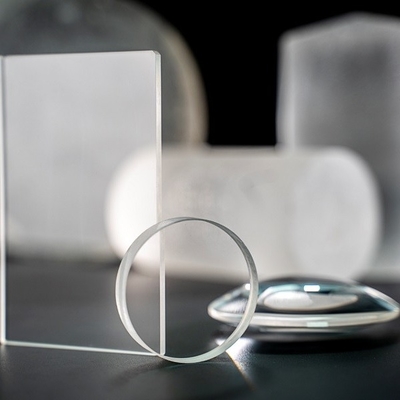

Lithium Fluoride has high transmittance in the UV region (120nm - 400nm) and is used in a range of components in UV-sources, receivers and eximer lasers. Windows, polarizers and lenses benefit from LiF as a substrate.
Care should be taken with LiF material due to its weakness when expeosed to sudden changes in temperature. Non-standard AR coatings are used when coating LiF material.

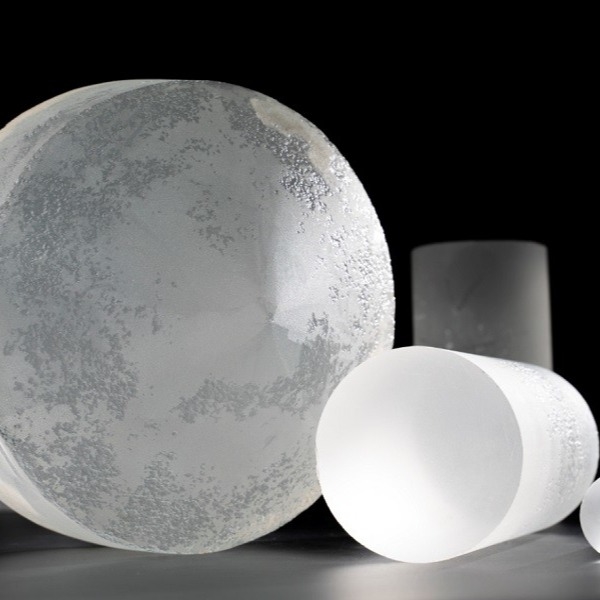

BonTek provides optical LiF material in single-crystal optical quality, fabricated to order.
|
Substance |
Form |
Diameter Range |
Thickness Range |
Transmission Range (µm) |
Surface Finish |
|---|---|---|---|---|---|
| Lithium Fluoride | Single Crystal | 5mm - 250mm | 1 - 100mm | 0.12 - 6.00 | Fine Ground / Optical Polish |
Material Properties
|
Transmission Range |
0.12 - 6.0 microns |
|
Refractive Index |
1.3920 @ 0.6 microns |
|
Reflection Loss |
5.2% @ 0.6 µm (2 surfaces) |
|
Absorption Coefficient |
5.9 x 10-3/cm @ 4.3µm |
|
Density |
2.64 gm/cc |
|
Melting Point |
855°C |
|
Poisson Ratio |
0.324 (calculated) |
|
Hardness |
102 Knoop, approx. 3. - 3.5 Mohs |
|
Crystal Structure |
Cubic <100> cleavage plane |
|
Thermal Expansion Coefficient |
37 x 10-6/K |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
