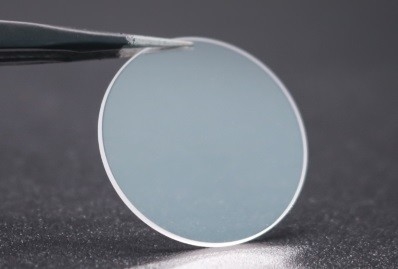

2" High Precision Piezoelectric Wafer Sapphire Wafer 330um 430um Thick
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001 |
| Model Number: | Sapphire (Al2O3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette, Jar, Film package |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material: | Sapphire Wafer | Type: | Single Crystal |
|---|---|---|---|
| Transmission Range: | 0.17 To 5.5 Microns | Surface: | Double Side Polish |
| Reflection Loss: | At 1.06 Microns (2 Surfaces) For O-ray - 11.7%; For E-ray - 14.2% | Index Of Absorption: | 0.3 X 10-3 Cm-1 At 2.4 Microns |
| Specific Heat Capacity: | 419 J/(kg X K) | Dielectric Constant: | 11.5 (parallel C-axis) 9.4 (perpendicular C-axis) At 1MHz |
| Highlight: | 50.8mm sapphire crystal wafer,430um Thick wafer,sapphire crystal wafer 330um |
||
Product Description
2" High Precision Piezoelectric Wafer Sapphire Wafer 330um 430um Thick
Our sapphire wafers are the epitome of precision and quality, crafted from the purest sapphire crystal. These wafers exhibit exceptional optical transparency, mechanical strength, and thermal stability, making them ideal for a wide range of applications in the semiconductor industry.
With their unique properties, our sapphire wafers offer superior performance in high-power electronics, optical devices, and sensors. They are also highly resistant to chemical attacks and can withstand extreme temperatures, making them a reliable choice for demanding applications.
Our state-of-the-art manufacturing process ensures consistent quality and precision in every wafer. We use advanced technologies to ensure accurate dimensions, smooth surfaces, and minimal defects.
Choose our sapphire wafers for your next semiconductor project and experience the difference in performance and reliability. Contact us today to learn more about our products and how they can transform your business.
| OPTICAL PROPERTIES of SAPPHIRE Al2O3 | |
|
Transmission Range |
0.17 to 5.5 microns |
|
Refractive Index |
1.75449 (o) 1.74663 (e) at 1.06 microns |
|
Reflection Loss |
at 1.06 microns (2 surfaces) for o-ray - 11.7%; for e-ray - 14.2% |
|
Index of Absorption |
0.3 x 10-3 cm-1 at 2.4 microns |
|
dN/dT |
13.7 x 10-6 at 5.4 microns |
|
dn/dm = 0 |
1.5 microns |
| PHYSICAL PROPERTIES of SAPPHIRE Al2O3 | |
|
Density |
3.97 g/cm3 |
|
Melting Point |
2040 degrees C |
|
Thermal Conductivity |
27.21 W/(m x K) at 300 K |
|
Thermal Expansion |
5.6 x 10 -6 /K (parallel C-axis) & 5.0 (perpendicular C-axis) x 10 -6 /K |
|
Hardness |
Knoop 2000 kg/mm 2 with 2000g indenter |
|
Specific Heat Capacity |
419 J/(kg x K) |
|
Dielectric Constant |
11.5 (parallel C-axis) 9.4 (perpendicular C-axis) at 1MHz |
|
Young's Modulus (E) |
335 GPa |
|
Shear Modulus (G) |
148.1 GPa |
|
Bulk Modulus (K) |
240 GPa |
|
Elastic Coefficients |
C11=496 C12=164 C13=115 |
|
Apparent Elastic Limit |
275 MPa (40,000 psi) |
|
Poisson Ratio |
0.25 |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
