Optical Grade Lithium Tantalate Wafer
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

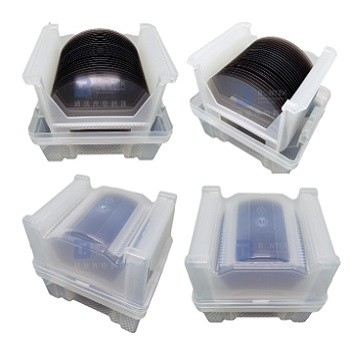

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Material: | Lithium Tantalate Wafer | Purity: | Optical Grade |
|---|---|---|---|
| Orientation: | 36°, 39°, 42 °, 46°, X-CUT, Etc. | Surface Finish: | DSP, SSP As Required |
| Size: | Φ76.2mm, Φ100mm Or 20×20mm | Thickness: | 0.35mm, 0.5mm, 1mm, Etc. |
| Primary Flat: | 22±2mm, 32.5±2mm, Etc. | Use: | Optical Devices, SAW Device |
| Highlight: | Polishing Wafer Ultraviolet To Infrared Range,0.35mm Optical Wafer,Lithium Tantalate Polishing Wafer |
||
Product Description
Chemical Mechanical Polishing Lithium Tantalate Wafer from Ultraviolet to Infrared Range
Lithium tantalate (LiTaO3) has piezoelectric, electro-optical and nonlinear optical characteristics, and a wide transparency range going from ultraviolet to infrared. It is desirable that LiTaO3 wafer was a smooth surface in order to function with good quality. Chemical mechanical polishing (CMP) has been used to planarize integrated circuits (ICs) or obtain a high surface quality of the substrates. This paper investigates the effect of citric acid as an additive in the slurry for LiTaO3 CMP.
|
Transmission Range |
0.275 - 5.25 µm; High transmittance from 0.4 – 4um |
|
Refractive Index |
no = 2.139, ne = 2.139 @633 nm |
|
Reflection Loss |
13.17%@0.633 µm |
|
Density |
7.4564 g/cm3 |
|
Melting point |
1650°C |
|
Molecular Weight |
235.89 |
|
Thermal Conductivity |
4.6 W/m·K ; 8.78 W/m·K |
|
Spec. Heat Capacity |
424 J/(K·kg) |
|
Hardness (Mohs) |
750 |
|
Dielectric Constant |
41-53 @298K |
|
Solubility in Water |
insoluble |
|
Crystal Structure |
Single crystal, synthetic |
|
Crystal Type |
trigonal, a = 5.15 Å c = 13.77 Å |
|
Cleavage Planes |
no cleavage |
|
Application |
electro optic Q-switch, integrated optical substrate, sensor, frequency converter |
|
Product |
Ltihium Tantalate Wafer | |
|
Diameter |
3inch | 4inch |
| 76.2mm | 100mm | |
|
Thickness |
0.07mm up | 0.1mm up |
|
Primary Flat |
22mm | 32.5mm |
|
S/D |
20/10 | 20/10 |
|
TTV |
<3um | <3um |
|
PLTV |
>95% | >95% |
|
Warp |
<20um | <40um |
|
BOW |
<20um | <30um |
|
Ra |
<0.5nm | <0.5nm |
|
Reduction |
Standard White Black Reduced |
Standard White Black Reduced |
|
Dope |
Fe doped Yellow Black |
Fe doped Yellow Black |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
