4 Inch 6 Inch 0.5mm Borofloat 33 Glass Wafer For Biotechnology Microelectronics
Product Details:
Place of Origin: | China |
Brand Name: | BonTek |
Certification: | ISO:9001, ISO:14001 |
Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
Minimum Order Quantity: | 5 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Cassette/ Jar package, vaccum sealed |
Delivery Time: | 1-4 weeks |
Payment Terms: | T/T |
Supply Ability: | 20000 pcs/Month |
Detail Information |
|||
Material: | Fused Silica Wafer | Brand: | Schott Brorofloat 33 |
---|---|---|---|
Diameter: | 76.2mm, 100mm, 150mm | Thickness: | 0.35mm, 0.5mm, 0.675mm |
Edge: | C Shape | Surface Finish: | SSP, DSP, DSL |
Type: | Borosilicate | Use: | Semiconductor, MEMS |
Highlight: | 0.5mm borofloat glass wafer,4 Inch Borosilicate glass wafer,6 Inch borofloat glass wafer |
Product Description

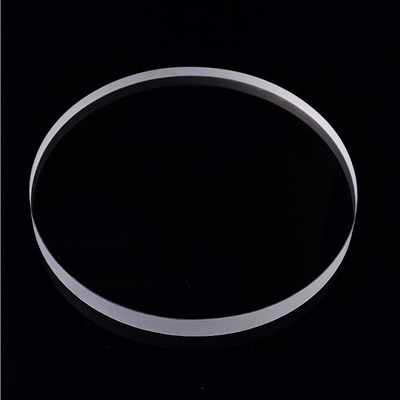

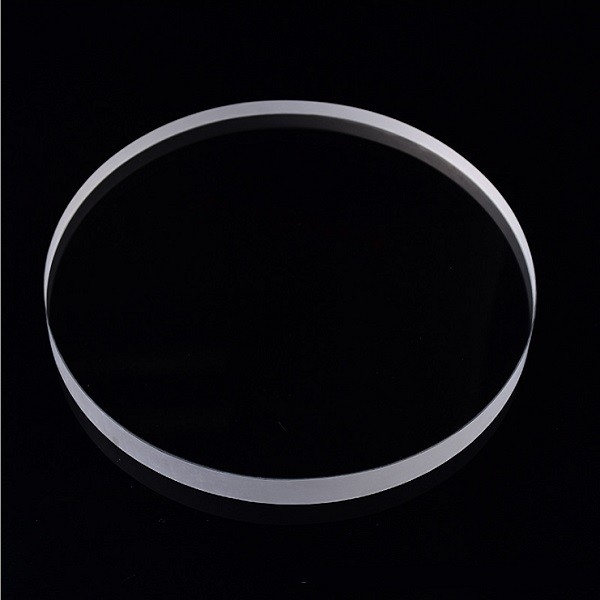

4 inch 6 inch 0.5mm Borofloat 33 Glass Wafer for Biotechnology, Microelectronics and Photovoltaic
BOROFLOAT33 is highly resistant to corrosion by water, strong acids, bases, and organic materials. Especially suitable for chemical applications, such as reactor and plant observation mirror. Another area of application is medical and analytical technology. The composition of the glass container is stable and has little effect on the measurement, since water and acid only lead to leaching of a very small number of ions from the glass. BOROFLOAT33 is less dense than sodium-calcium float glass. BOROFLOAT33 has already demonstrated its strength in many traditional applications.BOROFLOAT33 can be used to make laminated glass systems that perform the same function with significantly less weight than conventional laminated glass systems (e.g. bulletproof glass). Today, it continues to expand its presence in emerging and technically complex specialty glass applications such as biotechnology, microelectronics and photovoltaic.
Material |
BOROFLOAT 33 |
Density (@ 25°C/77°F) |
2.23 g/cm3 |
Modulus of Elasticity |
63 kN/mm2 |
Knoop Hardness HK 0.1/20 |
480 |
Poisson’s Ratio |
0.2 |
Dielectric Constant (@ 1 MHz & 25°C) |
4.6 |
Loss Tangent (@ 1 MHz & 25°C) |
37 x 10-4 |
Dielectric Strength(@ 50 Hz & 25°C) |
16 kV/mm |
Refractive Index (nd) |
1.472 |
Dispersion (nF - nC) |
71.9 x 10-4 |
Specification |
3” |
4” |
5" |
6" |
8" |
Diameter |
76.2mm |
100mm |
125mm |
150mm |
200mm |
Tol(±) |
<0.1~0.25 mm |
||||
Thickness |
>0.10mm |
>0.10mm |
>0.30mm |
>0.30mm |
>0.30mm |
Primary Flat |
22mm |
32.5mm |
42.5mm |
57.5mm |
Notch |
Notch |
|||||
TTV |
<8um |
<10um |
<15um |
<20um |
<30um |
Bow |
±20um |
±25um |
±40um |
±40um |
±60um |
Warp |
<30um |
<40um |
<50um |
<50um |
<60um |
PLTV(<0.5um) |
≥95%(5mm*5mm) |
||||
Transmittance |
UV, Optical, IR or Custom option |
||||
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
||||
Surface Type |
Single Side Polished /Double Sides Polished |
||||
Polished side Ra |
<1.0nm or specific per requested |
||||
Back Side Criteria |
General is 0.2-0.5µm or as customized |
||||
Appearance |
Contamination |
None |
|||
Particles>0.3µm |
<=30 |
||||
Saw Marks, striations |
None |
||||
Scratch |
None |
||||
Cracks, saw marks, stains |
None |
