Material: Fused Silica Wafer Brand: JGS1, JGS2, BF33, SK1300
Diameter: 76.2mm, 100mm, 150mm, 200mm Thickness: 0.25mm, 0.35mm, 0.5mm
Transmission: Infrared And Ultraviolet Spectrum Range: 200 Nm – 3 μm
Surface Finish: SSP, DSP, DSL Application: Semiconductor, MEMS
Highlight:

Semiconductor Fused Silica Wafer

,

Semiconductor Wafer UV Lithography

,

Fused Silica Wafer Low CTE

Product Description

Semiconductor use Fused Silica Wafer with Low CTE for UV Lithography



Wafers from semiconductor grade quartz (amorphous) are used in semiconductor processing, solar and industrial applications as well as for thin film coatings. Main feature is the high chemical purity making it a CMOS compatible material combined with excellent mechanical and optical properties.



Semiconductor grade quartz features low CTE as well as low OH content which enables high temperature processing and good transmission in IR and UV. This material is top notch when it comes to high quality quartz wafers with reasonable pricing.

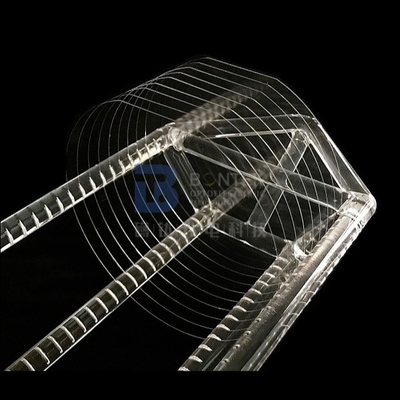

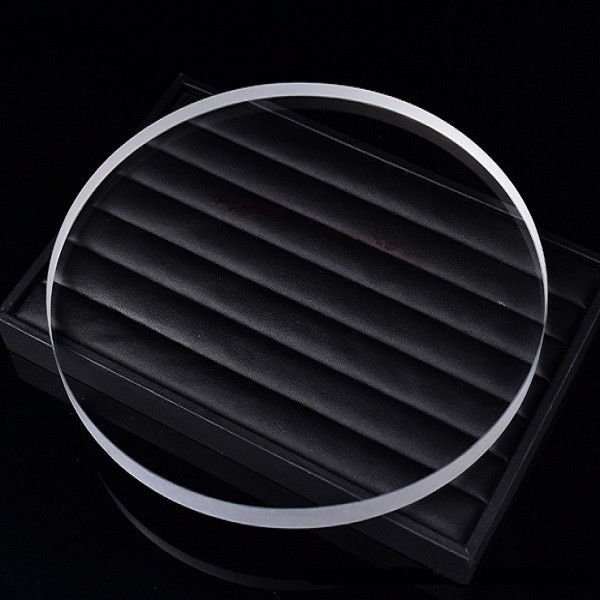

Semiconductor Use Fused Silica Wafer With Low CTE For UV Lithography 0Semiconductor Use Fused Silica Wafer With Low CTE For UV Lithography 1Semiconductor Use Fused Silica Wafer With Low CTE For UV Lithography 2



Parameter

JGS1

JGS2

JGS3

Maximum Size

<Φ200mm

<Φ300mm

<Φ200mm

Transmission Range (Medium transmission ratio)

0.17~2.10um (Tavg>90%)

0.26~2.10um (Tavg>85%)

0.185~3.50um (Tavg>85%)

OH- Content

1200 ppm

150 ppm

5 ppm

Fluorescence

(ex 254nm)

Virtually Free

Strong v-b

Strong V-B

Impurity Content

5 ppm

20-40 ppm

40-50 ppm

Birefringence Constant

2-4 nm/cm

4-6 nm/cm

4-10 nm/cm

Melting Method

Synthetic CVD

Oxy-hydrogen melting

Electrical melting

Applications

Laser substrate: Window, lens, prism, mirror...

Semiconductor and high temperature window

IR & UV
substrate



Semiconductor Use Fused Silica Wafer With Low CTE For UV Lithography 3



Semiconductor Use Fused Silica Wafer With Low CTE For UV Lithography 4
