4 Inch 100mm SiO2 Fused Silica Wafer Corning 7980 For Immediate Shipment
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

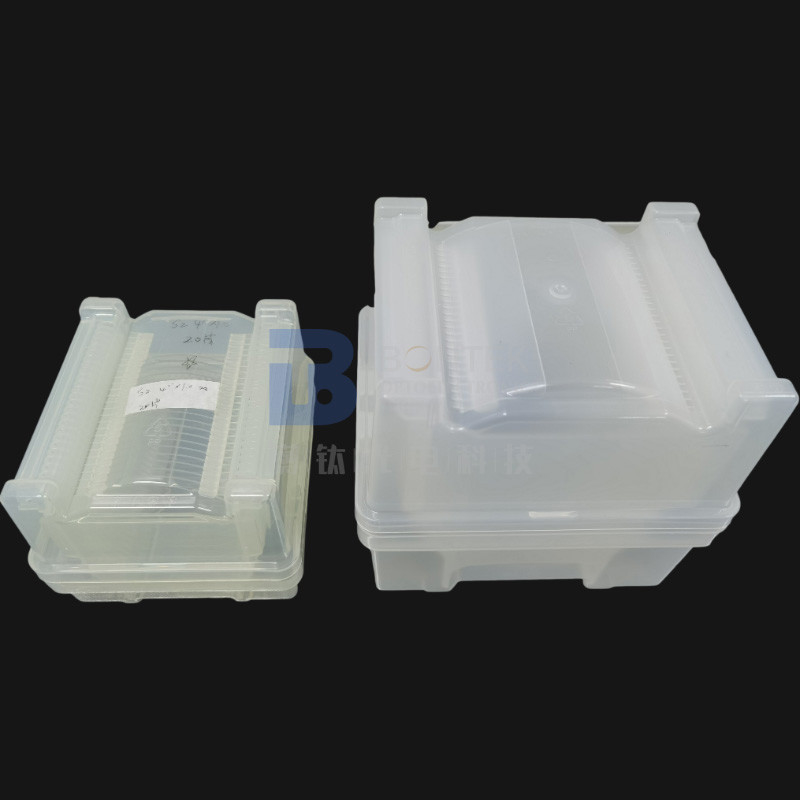

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Product: | Fused Silica Wafer | Type: | Fused Silica UV Grade |
|---|---|---|---|
| Brand: | Feilihua, Corning | Dia.: | 4 Inch, 100mm |
| Thickness: | 350um, 500um, 1000um | Transmission: | UV - VIS Range |
| Surface: | Double Side Polish | Roughness Ra: | Ra<1nm |
| Highlight: | 4 inch Fused Silica Wafer,100m SiO2 Wafer,Fused Silica Wafer Corning 7980 |
||
Product Description

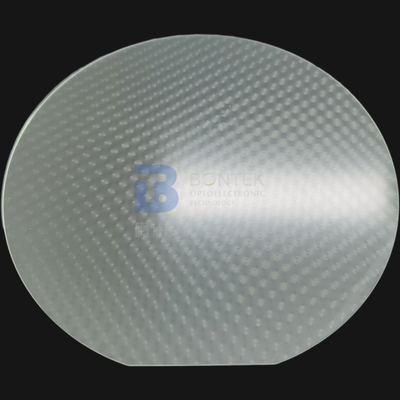

4 inch 100mm SiO2 Fused Silica Wafers Corning 7980 in stock for Immediate Shipment
High quality 4 inch SiO2 Fused Silica wafers are in stock for immediate shipment. Order 100mm fused quartz wafers with best price on the market from a trusted materials supplier, BonTek Optoelectronics. Custom made JGS1 fused silica wafers and substrates are available upon request. Please contact us for a quote. Corning Fused Silica 7980 High Purity Fused Silica (HPFS) and JGS1 Fused Silica wafers, windows and substrates are also available and can be custom made. Please contact us for a quote.
|
Material |
SiO2, fused silica (fused quartz) |
|
Diameter |
100 +/- 0.1 mm |
|
Thickness |
500 +/- 25 um |
|
Primary Flat |
32.5 +/- 2.0 mm |
|
Surface |
Double Side Polished (DSP) with surface roughness Ra < 1 nm |
|
S/D |
40/20 |
|
TTV |
< 10 um |
|
Edge |
with Bevel, C shape |
|
Fused Silica |
|||
|
Mechanical |
Units of Measure |
SI/Metric |
(Imperial) |
|
Density |
gm/cc (lb/ft3) |
2.2 |
-137.4 |
|
Porosity |
% (%) |
0 |
0 |
|
Color |
— |
clear |
— |
|
Flexural Strength |
MPa (lb/in2x103) |
— |
— |
|
Elastic Modulus |
GPa (lb/in2x106) |
73 |
-10.6 |
|
Shear Modulus |
GPa (lb/in2x106) |
31 |
-4.5 |
|
Bulk Modulus |
GPa (lb/in2x106) |
41 |
-6 |
|
Poisson’s Ratio |
— |
0.17 |
-0.17 |
|
Compressive Strength |
MPa (lb/in2x103) |
1108 |
-160.7 |
|
Hardness |
Kg/mm2 |
600 |
— |
|
Fracture Toughness KIC |
MPa•m1/2 |
— |
— |
|
Maximum Use Temperature (no load) |
°C (°F) |
1100 |
-2000 |
|
Thermal Conductivity |
W/m•°K (BTU•in/ft2•hr•°F) |
1.38 |
-9.6 |
|
Coefficient of Thermal Expansion |
10–6/°C (10–6/°F) |
0.55 |
-0.31 |
|
Specific Heat |
J/Kg•°K (Btu/lb•°F) |
740 |
-0.18 |
|
Dielectric Strength |
ac-kv/mm (volts/mil) |
30 |
-750 |
|
Dielectric Constant |
@ 1 MHz |
3.82 |
-3.82 |
|
Dissipation Factor |
@ 1 MHz |
0.00002 |
-0.00002 |
|
Loss Tangent |
@ 1 MHz |
— |
— |
|
Volume Resistivity |
ohm•cm |
>1010 |
— |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
