UV Grade Fused Silica Wafer 3'' 4'' 6'' JGS1 JGS2 JGS3
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

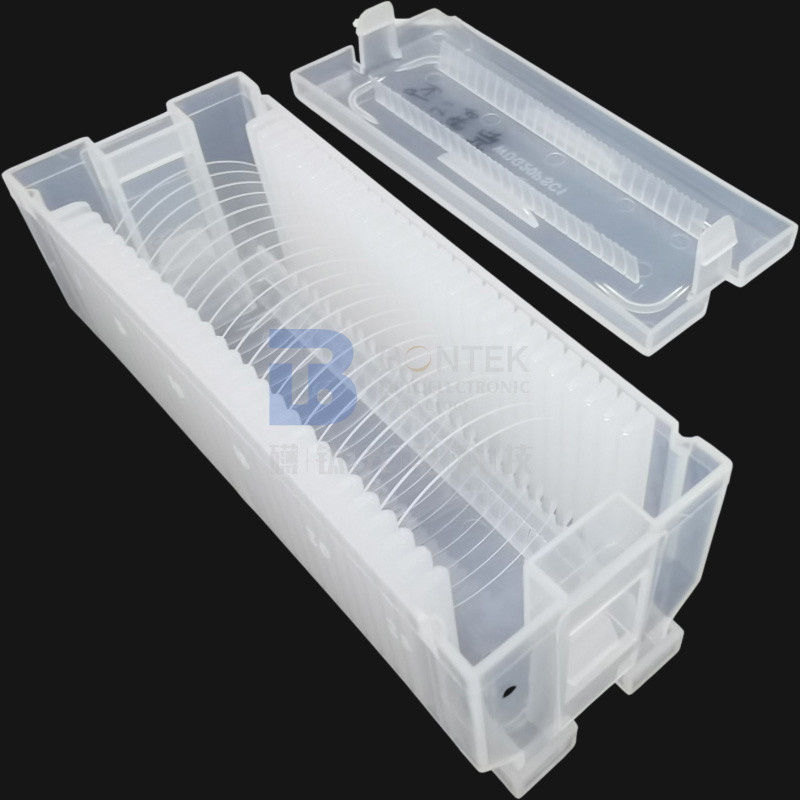

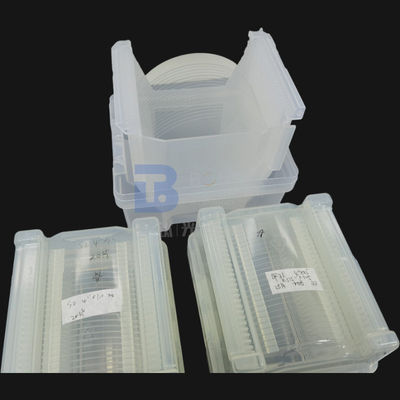

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Glass Wafer | Type: | Fused Silica, Fused Quartz, Borosilicate, Soda Lime |
|---|---|---|---|
| Brand: | Corning, Schott, Ohara | Diameter: | 3'', 4'', 6'', 8'', 12'' |
| Thickness: | 350um, 500um, 1000um | Flat: | 22mm, 32.5mm, 47.5mm, 57.5mm |
| Surface: | DSP, SSP, DSL | Roughness: | Ra<1nm |
| Highlight: | UV grade Fused Silica Wafer,borosilicate glass wafer JGS1,Fused Silica Wafer JGS2 |
||
Product Description

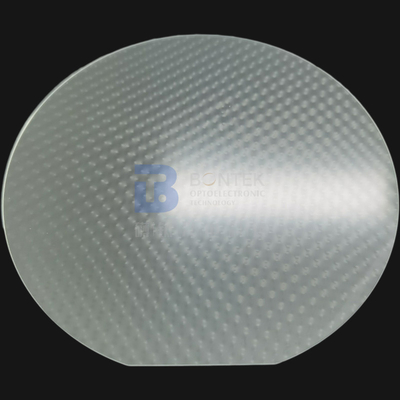

UV grade Fused Silica Wafer customized Diameter Thickness JGS1 JGS2 JGS3
BonTek works on a variety of glass and quartz materials depending on the application and requirements. The most used are three types of China made quartz glass, classified by their transmission range into JGS1 for UV-VIS range, JGS2 for VIS range, and JGS3 for UV-VIS-NIR range.
Apart from these, we also fabricate glass materials from Corning (7979, 7980, Eagle XG, Gorilla), Schott (BF33, Pyrex, MEMpax, B270, D263T, Zerodur), Ohara (SK1300), Heraeus, GM (H-K9L) etc.
|
Material |
UV Fused Silica, Fused Quartz (JGS1, JGS2, JGS3) |
||||||
|
Specification |
unit |
3” |
4” |
5" |
6" |
8" |
12" |
|
Diameter (or Square) |
mm |
76.2 |
100 |
125 |
150 |
200 |
300 |
|
Tol(±) |
mm |
<0.1~0.25 mm |
|||||
|
Thinnest Thickness |
mm |
>0.10 |
>0.10 |
>0.30 |
>0.30 |
>0.30 |
>0.50 |
|
Primary Flat |
mm |
22 |
32.5 |
42.5 |
57.5/notch |
notch |
notch |
|
LTV (5mmx5mm) |
µm |
<2 |
<2 |
<2 |
<2 |
<2 |
<10 |
|
TTV |
µm |
<8 |
<10 |
<15 |
<20 |
<30 |
<30 |
|
Bow |
µm |
±20 |
±25 |
±40 |
±40 |
±60 |
±60 |
|
Warp |
µm |
<30 |
<40 |
<50 |
<50 |
<60 |
<60 |
|
PLTV(<0.5um) |
% |
≥95%(5mm*5mm) |
|||||
|
Transmittance |
|
UV, Optical, IR or Custom option |
|||||
|
Edge Rounding |
mm |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|||||
|
Surface Type |
|
Single Side Polished /Double Sides Polished |
|||||
|
Polished side Ra |
nm |
<1.0nm or specific per requested |
|||||
|
Back Side Criteria |
µm |
General is 0.2-0.5µm or as customized |
|||||
|
Appearance |
Contamination |
None |
|||||
|
Particles>0.3µm |
<=30 |
||||||
|
Saw Marks, striations |
None |
||||||
|
Scratch |
None |
||||||
|
Cracks, saw marks, stains |
None |
||||||
