Czochralski Pulling Lithium Tantlate LiTaO3 Wafer Polarized For Optical And SAW
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Material: | LiTaO3 Wafer | Grade: | SAW Grade |
|---|---|---|---|
| Orientation: | 42Y-cut, 36Y-cut, 28Y-cut, Etc. | Surface Finish: | DSP, SSP, Lap |
| Diameter: | 3inch, 4inch | Thickness: | 0.35mm, 0.5mm |
| Primary Flat: | 22±2mm, 32±2mm | Application: | Telecom Mobile Phone Market |
| Highlight: | SAW grade LiTaO3 Wafer,Lithium Tantlate Wafer,3inch LiTaO3 Wafer |
||
Product Description

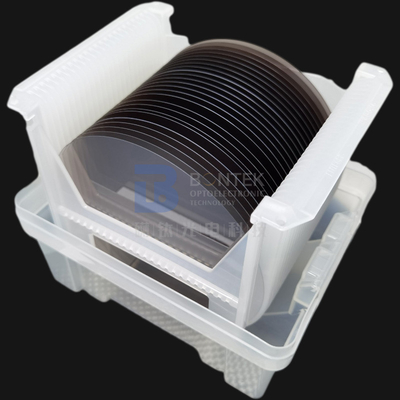

Czochralski pulling Lithium Tantlate LiTaO3 Wafer Polarized for Optical and SAW

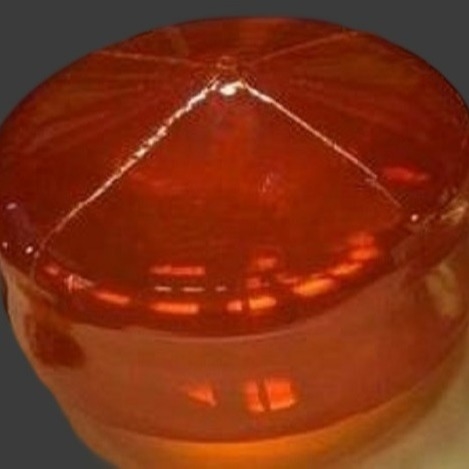

Lithium Tantalate (LiTaO3) crystallizes in the pseudo-ilmenite 3m structure. There are many possible technical applications of LiTaO3 related to the large electro-optic coefficient. High-quality single crystals can be essentially grown by the Czochralski pulling method. The system is uniaxial and optical properties measured on a single crystal are, therefore, anisotropic. The anisotropy of the refractive index in the visible region is mainly related to the anisotropy of the oxygen polarizability and is surprisingly small. These small anisotropies are related to the fact that the structure of LiTaO3 derives from the cubic perovskite structure. At the intermediate frequencies, the anisotropy of the structure induces very different lattice dynamical properties and band structure, so that the spectra of the index of refraction n and extinction coefficient k are very different for the polarizations parallel and perpendicular to the ferroelectric c axis. Reflection spectra in the optical range 2-35 eV is obtained.
|
Material |
3" 4" 6" LT wafer Saw/Optical grade |
|
Orientation |
X112° / Y28° / Y36° / Y42° / YZ or Customized |
|
Curie Temp |
605°C±3°C |
|
Doped with |
Fe doped or undoped |
|
Single Domain |
Completed Polarization / Reduced |
|
Product |
Ltihium Tantalate (LT) Wafer |
|
|
Diameter |
3inch |
4inch |
|
76.2mm |
100mm |
|
|
S/D |
20/10 |
20/10 |
|
TTV |
<3um |
<3um |
|
PLTV |
>95% |
>95% |
|
Warp |
<20um |
<40um |
|
BOW |
<20um |
<30um |
|
Ra |
<0.5nm |
<0.5nm |
|
Reduction |
Standard White |
Standard White |
|
Dope |
Fe doped |
Fe doped |
|
Crystal Structure |
Trigonal, Space group R3c, Point group 3m |
|
Cell Parameters |
a=5.154Å, c=13.781Å |
|
Melting Point |
1650℃ |
|
Curie Temperature |
607℃ |
|
Mohs Hardness |
5.5 |
|
Density |
7.46g/cm3 |
|
Dielectric Constants |
ε11/ε0:51.7 |
|
ε33/ε0:44.5 |
|
|
Elastic Stiffness Coefficients |
CE11:2.33(×1011N/m2) |
|
CE33:2.77(×1011N/m2) |
|
|
Piezoelectric Strain Constants |
d22:2.4(×10-11C/N) |
|
d33:0.8(×10-11C/N) |
|
|
Transmission range |
400-4500nm |
|
Electro-optical coefficients |
r33=30.4pm/V |
|
Refractive index at 632.8nm |
no=2.176, ne=2.180 |
