Seedless Single Crystal Quartz IRE Standard In X Cut , Y Cut , Z Cut
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Material: | Single Crystal Quartz | Dia: | 3'', 4'', 100×100mm |
|---|---|---|---|
| IRE: | (yxl)35°，(yxl)42.46°，(yxwl)24°24'/34°18' | Thickness: | 0.075mm Up |
| Surface: | Polish, Lap, Etch | Use: | Navigation, Broadcasting, Time And Frequency Control |
| Ra: | <1nm | Growth: | Hydrothermal Growth |
| Highlight: | 0.075mm Single Crystal Quartz,Piezoelectric Quartz X Cut,Single Crystal Quartz IRE Standard |
||
Product Description

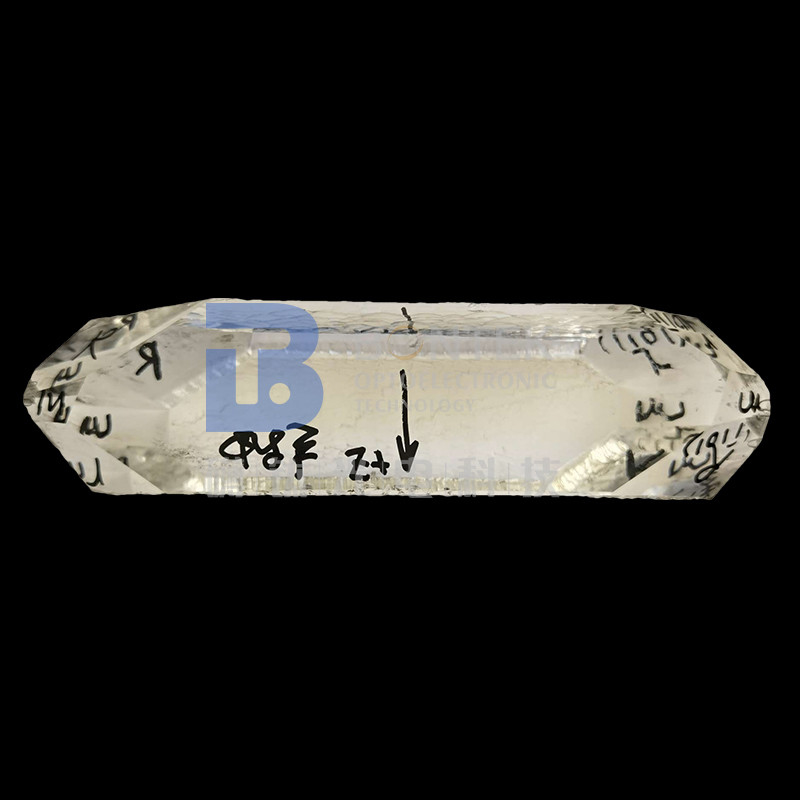

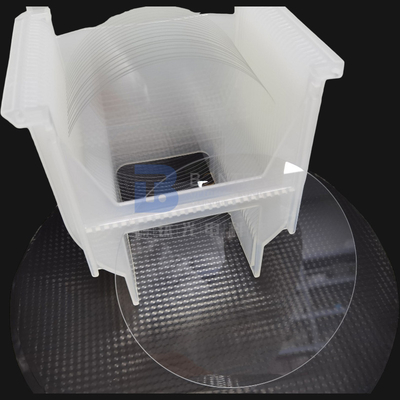

Seedless Single Crystal Quartz in X cut , Y cut , Z cut , AT cut, ST cut, DT cut
All single crystal quartz should be grown from a special seed. Different cutting types result in different seed positions. If the seed area is not avoided inside the wafer, then it’s "with seed", if we can avoid the seed inside the wafers, then it’s "seedless". The cutting of Piezoelectric Quartz wafer to a certain orientation of the crystal coordinate axis is called the cutting type of quartz wafer. Due to its anisotropy, different orientation of quartz crystal shows different electrical and thermal properties because of the difference in elastic properties, piezoelectric properties and temperature properties. The most widely used cut types are X cut , Y cut , Z cut , AT cut, ST cut, DT cut, etc. You can also use IRE standard or Euler angle, we will know.
| Material | Single Crystal Quartz Wafer | ||||
| Q-Value | Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) | ||||
| ECD |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2； Swept Quartz (IEC standards) |
||||
| Inclusions | Ia,Ib,I, II,III Grades (IEC standards) | ||||
| Orientation | X, Y, Z, AT, ST, BT, CT, ET ,DT, GT, NT, FC, SC, IT, etc. | ||||
| Diameter | 2 inch 50.8mm |
3 inch 76.2mm |
4 inch 100mm |
6 inch 150mm |
8 inch 200mm |
| Tolerance | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm |
| Thickness Tolerance |
±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm |
| Seed | seedless for any cut Or with seed |
seedless for Z-cut Other cut with seed |
|||
| Primary Flat | 16±2mm | 22±2mm | 32±2mm | 47.5±2mm 57.5±2mm |
57.5±2mm |
| Notch | - | - | - | 1~1.25mm 89~95° |
1~1.25mm 89~95° |
| S/D | 40/20 | 60/40 | 60/40 | 60/40 | 60/40 |
| TTV | <1.5um | <5um | <5um | <5um | <5um |
| PLTV | >95% | >95% | >95% | >95% | >95% |
| Warp | <9um | <15um | <30um | <50um | <70um |
| Bow | <9um | <15um | <30um | <40um | <60um |
| Ra | <0.5nm | <1nm | <1nm | <1nm | <1nm |
